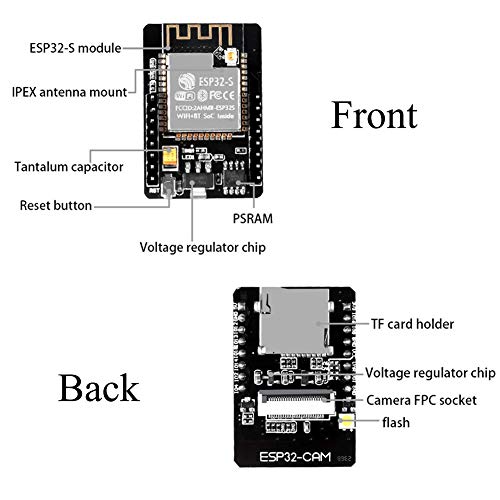

OV2640 ESP32-CAM Wireless WIFI Bluetooth Module

Specifications:

IO Port: 9

Power Supply: 5V 2A

WiFi: 820.11 b/g/n/e/i

SPI Flash: Default 32Mbit

Spectrum Range: 2412-2484MHZ

Serial Port Rate: Default 115200 bps

RAM: Internal 520KB + External 4M PSRAM

Antenna Form: Onboard PCB antenna, gain 2dBi

Bluetooth: Bluetooth 4.3 BR/EDR and BLE standard

Image Output Format: JPEG (Only OV2640 support), BMP, GRAYSCALE

Feature

Support TF card.(Max 4G)

Support image WiFi upload.

Support multiple sleep modes.

Embedded Lwip and FreeRTOS.

Support secondary development.

Support STA/AP/STA+AP working mode.

Built-in 520 KB SRAM, external 4M PSRAM.

Support OV2640 and OV7670 cameras, built-in flash.

Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC.

Support Smart Config/AirKiss one-click distribution network.

Transmit Power:

820.11b: 17±2dBm (@11Mbps);

820.11g: 14±2dBm (@54Mbps);

820.11n: 13±2dBm (@MCS7)

Safety: WPA/WPA2/WPA2-Enterprise/WPS

Application:

Smart agriculture

Wireless monitoring

Home smart device map

QR wireless identification

Package Included:

3X ESP32-CAM Module

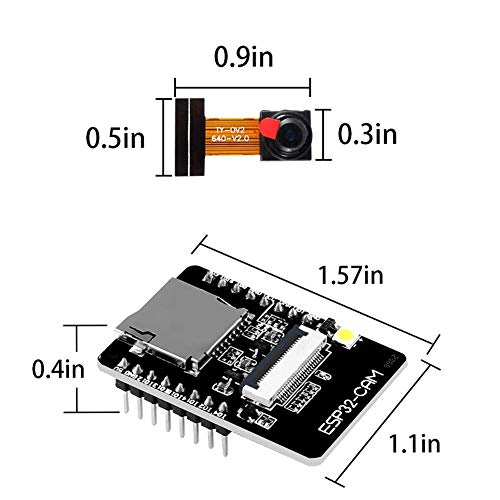

3X OV2640 2MP Camera Module
